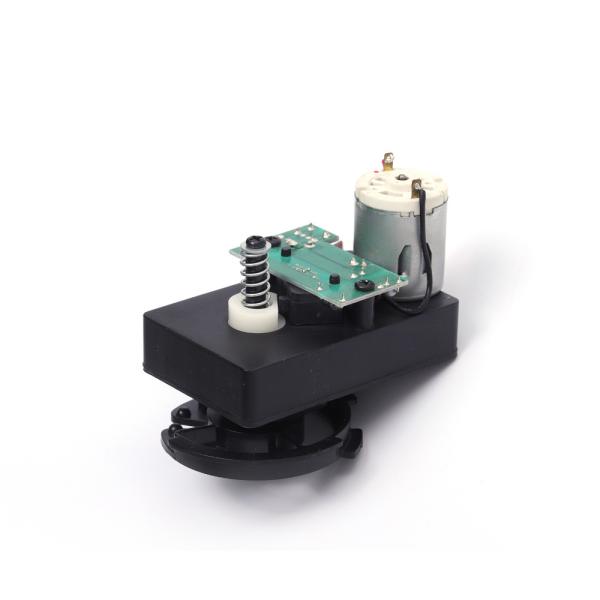

RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB

Product Categories

Ningbo Lino Electric Accessories Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
Brand: LINO
Price: 1 USD

Brand Name : LINO

Model Number : GMF8251

Certification : ROHS

Place of Origin : ZHEJIANGNINGBO

MOQ : 1K

Price : The price ranges from 15 to 30 rmb per unit. The specific model requirements vary

Payment Terms : T/T

Supply Ability : 100,000 units per month

Delivery Time : 30work days

Packaging Details : Carton with pallet

Voltage : 12VDC,24VDC

Motor : RS365,BLDC

PCB : switch type or Hall type

typical application : vending machine

Contact Now

DC GEAR MOTOR GMF8251

Products' type:	DC geared motor
Model:	GMF8251
Sort:	Square shape DC geared motor
Typical applications:	vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…





Weight	118g (approx)

MODEL	VOLTAGE	AT NO LOAD		AT MAXIMUM EFFICIENCY				AT STALL
	VOLTAGE	SPEED	CURRENT	SPEED	CURRENT	TORQUE		TORQUE		CURRENT
	VDC	RPM	A	RPM	A	mN.m	kg.cm	mN.m	kg.cm	A
GMF8251-365	24	24	0.11	19	0.29	1519	15.500	8232	84.000	1.17
Base motor option	RS360,RS365,RS380,RS385,RS390,RS395
Gear ratio option	419
Note	The specifications and output shaft can be changed as customer's request.
Packing detail	Carton, Size: 52X36X36CM;100pcs/carton; G.W:14Kg.

RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
